Wheel Alignment

Scissor Lift, 10,000lb capacity, 179" WB capacity, (2) 6,000lb Swing Jacks, stainless turnplates.

1-RX10KL
Made In The USA

Add to cart

Request a call

Click to see additional Options / Models / Accessories Available
Options Accessories



Click to view California Proposition 65 warning



Large Capacity with a Small Footprint, 24" Wide Runways, Best in Class Drive On Height, Stainless Steel Turnplates, Integrated Air Line, Sensor Feedback System, Velocity Safety Fuses, 2 Swing Air Jacks, Louvered Ramps, Safety Lock, Movable Work Steps.

See below for other optional models available.



Features

  • Fast descent speed -50% faster lowering times & Ensures a soft landing by automatically slowing the last several inches.
  • Swing Air Jacks - 6,000 lb. capacity, Lift vehicles off the runways during alignment procedures and other multi-service operations, and the Folding design provides lowest-profile .
  • FIA allows WinAlign® aligners to control the lift features for ultimate productivity.
  • Two patented designs offer greater flexibility and timesaving capabilities.
  • Standard Equipment.
  • Stainless steel turnplates.
  • Flush-mounted, full-floating slipplates (PowerSlide® slipplates on PS and IS models).
  • Two movable work steps (not included with flush-mount installations).
  • Louvered Ramps with built-in wheel stops, Two wheel chocks.
  • Built-in, Full-Length Jack Rails & Air Line Kit.



Technical

ALI Certified Yes
Max Wheel Base 187 inch
Above ground or inground Above
Weight approx. 5652 lbs
Power supply 220V,1ph, 7A,NEMA L6-20P V/Hz/A
Dimensions (L x W x H) 192 x 35 x 54 inch



Options

1-RX10KLBLK Black Scissor Lift, 10,000lb capacity, 179" 2WA WB, (2) 6,000lb Swing Jacks, stainless turnplates. Login for special pricing Add to cart
1-RX10KLF Scissor Lift, flush mount, 10,000lb capacity, 175" 2WA WB, (2) 6,000lb Swing Jacks, stainless turnplates. Login for special pricing Add to cart
1-RX10KLFBLK Black Scissor Lift, flush mount, 10,000lb capacity, 175" 2WA WB, (2) 6,000lb Swing Jacks, stainless turnplates. Login for special pricing Add to cart
1-RX10KLFIS Scissor Lift, flush mount, FIA, Inflation Station, PowerSlide, 10,000lb capacity, 175" 2WA WB, (2) 6,000lb Swing Jacks, PowerSli Login for special pricing Add to cart
1-RX10KLFISBLK Black Scissor Lift, flush mount, FIA, Inflation Station, PowerSlide, 10,000lb capacity, 175" 2WA WB, (2) 6,000lb Swing Jacks, Po Login for special pricing Add to cart
1-RX10KLFPS Scissor Lift, flush mount, FIA, PowerSlide, 10,000lb capacity, 175" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates. Login for special pricing Add to cart
1-RX10KLFPSBLK Black, Scissor Lift, flush mount, FIA, PowerSlide, 10,000lb capacity, 175" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplate Login for special pricing Add to cart
1-RX10KLIS Scissor Lift, flush mount, FIA, Inflation Station, PowerSlide, 10,000lb capacity, 175" 2WA WB, (2) 6,000lb Swing Jacks, PowerSli Login for special pricing Add to cart
1-RX10KLISBLK Black Scissor Lift, FIA, Inflation Station, PowerSlide, 10,000lb capacity, 179" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide tur Login for special pricing Add to cart
1-RX10KLPS Scissor Lift, FIA, PowerSlide, 10,000lb capacity, 179" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates. Login for special pricing Add to cart
1-RX10KLPSBLK Black Scissor Lift, FIA, PowerSlide, 10,000lb capacity, 179" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates. Login for special pricing Add to cart



Accessories

1-133-85-1 Swing Air Jack - 6,000 lb. Capacity. Login for special pricing Add to cart
1-147-113-1-PPP Long RX Approach Ramp Extension (Two Required) Login for special pricing Add to cart
1-20-2189-1BLK Stage 2 RX Approach Ramps - 50" long extended approach ramps for all RX models. Black Login for special pricing Add to cart
1-20-2395-1BLK Black, Kit-50mm Filler Plate - Fits into turnplate pockets when turnplates are not used. 19.5" wide. Login for special pricing Add to cart
1-20-2497-1 RX16, RX12A, and RX10 series Conventional Sensor Extension Kit for Surface-Mount Applications Login for special pricing Add to cart
1-20-2497-1BLK Black, RX16, RX12A, and RX10 series Conventional Sensor Extension Kit for Surface-Mount Applications Login for special pricing Add to cart
1-20-2498-1 RX16, RX12A, and RX10 series Drive-Through Kit Login for special pricing Add to cart
1-20-2532-1 14" Convertible Turnplates Kit, Stainless Steel Login for special pricing Add to cart
1-20-2533-1 14" Convertible Turnplates Kit - Low Friction, Stainless Steel Login for special pricing Add to cart
1-20-2736-1BLK Black RX10, 12A, 16 Flush Conversion Kit. Ramps and extenders to convert a surface mount rack to flush mount. Login for special pricing Add to cart

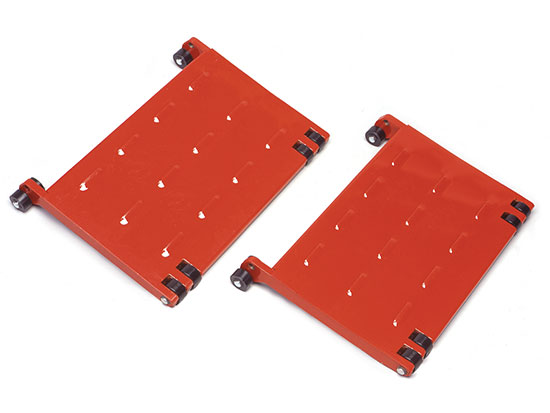

1-20-3113-1 RX ramp 17.75" extension. Contains two 147-113-1-PPP extensions and four 121-336-005 stop blocks. Adds 17.75" to overall length of RX9, RX10 and RX16, or 5" to RX12(A) when substituted for 20-3112-1. Login for special pricing Add to cart
1-20-3113-1 Black, RX ramp 17.75" extension. Contains two 147-113-1-PPP extensions and four 121-336-005 stop blocks. Adds 17.75" to overall length of RX9, RX10 and RX16, or 5" to RX12(A) when substituted for 20-3112-1. Login for special pricing Add to cart

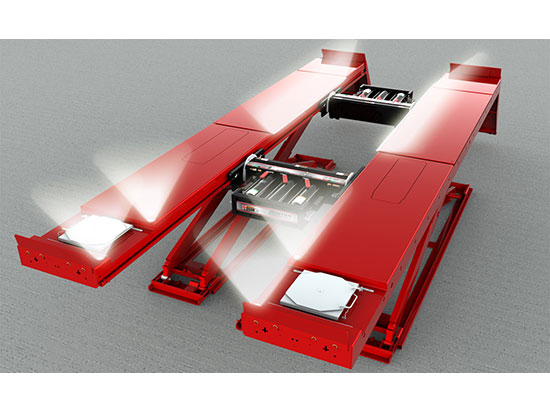

1-20-3438-1 RX light kit for K model racks. Login for special pricing Add to cart
1-20-3631-1 RXK Series Racks, Upgrades Power Slide, to Inflation Station Login for pricing Add to cart
1-22-525-2 Angle - Rubber Wheel Chock Login for special pricing Add to cart
1-69-1456-005 COVER-HYDRAULIC HOSE WIDE 47"L Login for special pricing Add to cart
1-PACKAGING Wood Packaging to protect Lift Racks during shipping (required for shipments to Alaska/Hawaii only) Login for special pricing Add to cart
