Tire And Wheel Service
Road Force Elite
Login for pricing
1-RFE00
Click to view California Proposition 65 warning
Exclusive Unmatched Speed and Hunter Net. Also Patented Vision System and Enhanced Smart Weight
Features
- Performs Road Force Test and Balance Faster than any Traditional Balacer.
- The Vision System eliminates error opportunities, more information in less time.
- Enhanced SmartWeight provides a better balance, maximum efficiency, and more single weight solutions.
- With HunterNet you can view balancer usage and track weight usage.
- Diagnostic Load Roller solves vibration problems, Identifies vehicle pulls, and provides "new car ride".
- E-Call Auto Calibration - True "Self Calibration", no operator input required.
- On-Demand Videos simplifies training to improve results.
- Centering Check ensures proper centering and eliminates set up errors.
- Touchscreen Interface can quickly train New Technicians.
Technical
| Tire diameter | 40 | inch |
| Tire width | 20 | inch |
| Weight approx. | 741 | lbs |
| Rim diameter | 10 in to 30 in | inch |
| Rim width | 1.5 in to 20.5 in | inch |
| Color | Hunter Red | |
| Power supply | 196-253V, 10 amp, 50/60 Hz, 1 ph (Power cable includes: NEMA 20 amp plug, L6-20P) | V/Hz/A |
| Balancing speed | 300 | rpm |
| Dimensions (L x W x H) | Lx57x70 | inch |
Options
Accessories
| 1-106-82-2 | Protector Sleeve Scratch Guard | Login for special pricing | Add to cart |
| 1-135-581-2 | Long pin in Medium Duty Collet Kit.The new medium-duty collet kit provides unmatched centering. Handles vehicles from an F-250 up to a vehicle | Login for special pricing | Add to cart |
| 1-135-582-2 | Pin in Medium Duty Collet Kit, 20-3116-1. Used on certain Isuzu, Mercedes and Freightliner applications. Wide taper centering pin mounts certain Isuzu, Mercedes and Freightliner wheels. | Login for special pricing | Add to cart |
| 1-135-601-2 | 90mm pin in Medium Duty Collet Kit, included in 20-3116-1. | Login for special pricing | Add to cart |
| 1-167-107-2 | Printer - High Speed USB HP 6230. | Login for special pricing | Add to cart |
| 1-175-316-1 | Cup (4.5"), Notched Design | Login for special pricing | Add to cart |
| 1-175-328-2 | Flange Plate. This adaptors pins have threads and a cap. Can be used as replacement for 175-265-2. Stud = 175-332-2. | Login for special pricing | Add to cart |
| 1-175-386-2 | Adaptor-Flange Plate 2 | Login for special pricing | Add to cart |
| 1-175-388-2 | Adaptor-Flange Plate 4 | Login for special pricing | Add to cart |
| 1-175-396-2 | Adaptor-Star pattern 5-arm clamp adaptor. | Login for special pricing | Add to cart |
| 1-175-397-2 | Medium duty 4 arm clamp star adaptor. | Login for special pricing | Add to cart |
| 1-175-400-2 | 4-Arm Clamp Star MD Adapter | Login for special pricing | Add to cart |
| 1-175-407-2 | Sprinter 6-Lug Flange Adaptor (flange plate for 2500 series) | Login for special pricing | Add to cart |
| 1-192-186-2 | Cone -- Hub Disc 4.88", 4.92" | Login for special pricing | Add to cart |
| 1-192-229-2 | Collet, Direct-Fit, Two Sided, Low Taper, (2.550" - 2.775") | Login for special pricing | Add to cart |
| 1-192-236-2 | 2500/3500 Spring Loaded Cone | Login for special pricing | Add to cart |
| 1-192-246-2 | Medium duty universal collet #17, Hub pilot disc. The new medium-duty collet kit provides unmatched centering. Handles vehicles from an F-250 up to a vehicle | Login for special pricing | Add to cart |
| 1-192-248-2 | Mercedes low taper 2-degree collet. Clamping range: 66.3 - 66.9mm / 83.7-84.3mm / 64.8-65.3mm. See Form 700MB. | Login for special pricing | Add to cart |
| 1-192-250-1 | Cone-2.44-2.65, 2.58-2.79 | Login for special pricing | Add to cart |
| 1-192-251-1 | BullsEye Collet: 2.71 in. to 3.11 in. (69 mm-79 mm) | Login for special pricing | Add to cart |
| 1-192-252-1 | CONE-3.05-3.27, 3.21-3.42 BullsEye Collet: 3.05 in. to 3.42 in. (77 mm-87 mm) Covers a wide range of wheel sizes | Login for special pricing | Add to cart |
| 1-20-2031-1 | Porsche Accessory Kit - This kit includes the 175-379-2 pressure ring, 192-147-2 cone, 46-433-2 spacer, and the 128-1095-2. | Login for special pricing | Add to cart |
| 1-20-2388-1 | Direct-Fit Collet and Flange Plate Mounting Kit | Login for special pricing | Add to cart |
| 1-20-2388-1 | Direct-Fit Collet and Flange Plate Mounting Kit | Login for special pricing | Add to cart |
| 1-20-2711-1 | Balancer Centering Kit- Includes 6" clamping cup, wingnut, spacer and 20-2683-1 collet kit. | Login for special pricing | Add to cart |
| 1-20-2765-1 | BullsEye collet kit and front mounted storage for Touch balancers - Includes BullsEye collets, offset spacer 20-2711-1, 6" cup 175-392-1, storage 56-70-2, and bracket 14-1470-005. Note: incl. w/RFE, compatible with SWT, NOT compatible with SWP | Login for special pricing | Add to cart |
| 1-20-2765-1 | Gen IV BullsEye Collets and Storage | Login for special pricing | Add to cart |
| 1-20-3116-1 | KIT-UNIVERSAL MD CENTERING,With unmatched centering performance and only 5 major pieces, this kit can handle vehicles from an F-250 up to a wrecker with 19.5" wheels. | Login for special pricing | Add to cart |

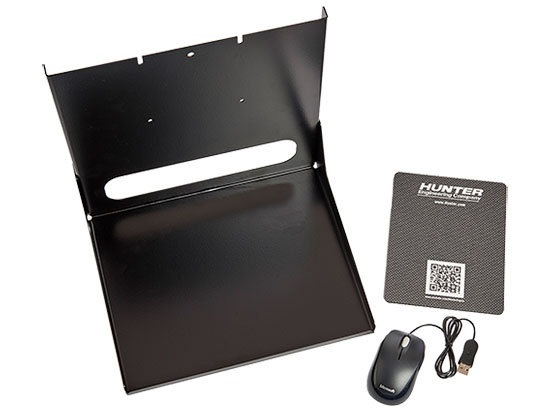

| 1-20-3133-1 | Mouse shelf for RFT/SWT balancers. Kit includes mouse, mouse pad and shelf. | Login for special pricing | Add to cart |
| 1-20-3327-1 | KIT-RFE BAL ACCYS BMW | Login for special pricing | Add to cart |

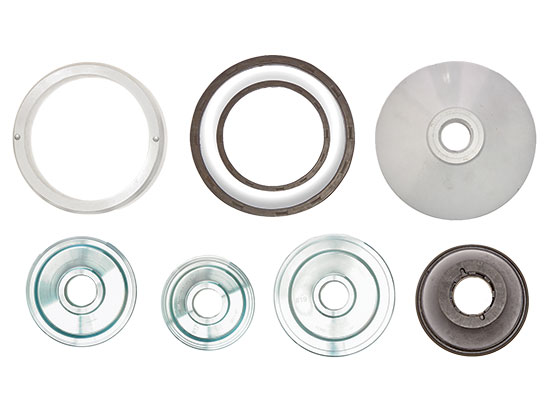

| 1-20-3358-1 | Economy MD collet kit provides broad coverage for most medium duty applications. Does not handle the large 8 lug/8.7” bore found on some medium duty trucks. 20-3155-1 covers that application and includes 20-3116-1. Includes application chart. | Login for special pricing | Add to cart |
| 1-20-3575-1 | Balancer Anchor Kit | Login for special pricing | Add to cart |
| 1-20-3698-1 | Universal Flange Plate-AL Kit | Login for special pricing | Add to cart |
| 1-20-3777-1 | Bullseye, Storage, Flange Kit | Login for special pricing | Add to cart |
| 1-20-3777-1 | Bullseye, Storage, Flange Kit | Login for special pricing | Add to cart |
| 1-20-3779-1 | SPHERICAL PINS SHORT - For use on Flange Plate | Login for special pricing | Add to cart |
| 1-221-772-2 | Adhesive tape weight pliers - specially angled jaws allow tape weights to be plucked from the rim without scraping. | Login for special pricing | Add to cart |
| 1-223-68-1 | Pressure Ring, Clip-On | Login for special pricing | Add to cart |
| 1-46-309-2 | Spacer Ring, Extra Large Truck Cone, Polymer | Login for special pricing | Add to cart |
| 1-46-748-2 | Medium duty collet spacer,The new medium-duty collet kit provides unmatched centering. Handles vehicles from an F-250 up to a vehicle with 19.5 in. wheels | Login for special pricing | Add to cart |
| 1-51-2912-2 | Medium duty flange plate. The new medium-duty collet kit provides unmatched centering. Handles vehicles from an F-250 up to a vehicle with 19.5 in. wheels. | Login for special pricing | Add to cart |
| 1-76-574-2 | Progrip Quick Clamp Wing Nut | Login for special pricing | Add to cart |
| 1-76-597-3 | Long Arm Steel Wingnut | Login for special pricing | Add to cart |
