The TC33 series retains the simplicity of the TC3300, while introducing features like a three-position platen, optional wheel lift & dual optional press systems. Center clamp with cam plate, 10-26” wheel diameter, integrated blast inflation, standard polymer head, PowerOut Side shovel.



Features

• Floating 3-Point Arm - Faster than swing-arm designs, Follows rim for ultimate protection.
• Convenient Storage - Store tools and accessories within arm’s reach.
• 3-Position Platen Height - Adjusts for operator comfort & Allows wide range of wheel widths.
• Wheel Protection - Clamps through hub, not to rim edge , All contact surfaces polymer protected , and Cam plate keeps wheels secure.
• Motor and Drive - Powerful 220V motor, Fully-variable 0-14 RPM clockwise, 14 RPM counterclockwise, and 867 ft-lbs. of torque.
• Center Clamp Simplicity - Cam action multiplies clamping force,No need for flange plates on most reverse wheels.
• Built-In Blast Inflation - Directs bursts of compressed air to easily seat the bead.



Technical

Tire diameter	50	inch
Weight approx.	660	lbs
Color	Hunter Red
Power supply	220V 6A, L6-20P plug	V/Hz/A
Dimensions (L x W x H)	57 x 29 x 70	inch



Options

1-TC33BP	TC33 Tire Changer with Bead Press	Login for special pricing	Add to cart
1-TC33M	TC33 Mobile Tire Changer	Login for special pricing	Add to cart
1-TC33MBP	TC33 Mobile Tire Changer with Bead Press	Login for special pricing	Add to cart
1-TC33PL	TC33 Tire Changer with Plus Device	Login for special pricing	Add to cart



Accessories

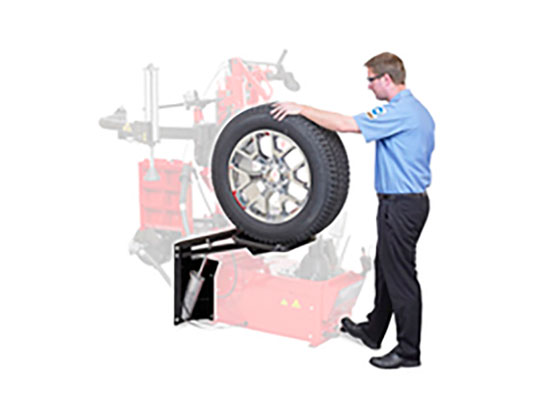

1-20-3442-1	Wheel Lift	Login for special pricing	Add to cart
1-20-3781-1	Bead Press Kit	Login for special pricing	Add to cart
1-20-3782-1	Plus Device Kit	Login for special pricing	Add to cart
1-RP6-G1000A11	High-Performance Bead Lever	Login for special pricing	Add to cart
1-RP6-G1000A7	Mechanical Bead Roller	Login for special pricing	Add to cart
1-RP6-G1000A87	Flange plate for chrome-clad and reverse wheels	Login for special pricing	Add to cart
