Large Capacity with a Small Footprint, 24" Wide Runways, Best in Class Drive On Height, Stainless Steel Turnplates, Integrated Air Line, Sensor Feedback System, Velocity Safety Fuses, 2 Swing Air Jacks, Louvered Ramps, Safety Lock, Movable Work Steps.



Features

• Fast descent speed -50% faster lowering times & Ensures a soft landing by automatically slowing the last several inches.
• Swing Air Jacks - 6,000 lb. capacity, Lift vehicles off the runways during alignment procedures and other multi-service operations, and the Folding design provides lowest-profile .
• FIA allows WinAlign® aligners to control the lift features for ultimate productivity.
• Two patented designs offer greater flexibility and timesaving capabilities.
• Standard Equipment
• Stainless steel turnplates
• Flush-mounted, full-floating slipplates (PowerSlide® slipplates on PS and IS models)
• Two movable work steps (not included with flush-mount installations)
• Front wheel stops & Two wheel chocks
• Built-in, Full-Length Jack Rails & Air Line Kit



Technical

Max Wheel Base	184/180	inch
Weight approx.	5482	lbs
Above ground or inground	Above
Power supply	220V,1ph, 7A,NEMA L6-20P	V/Hz/A
Dimensions (L x W x H)	192 x 35 x 54	inch
ALI Certified	Yes



Options

1-RX10KBLK	Black Scissor Lift, surface mount, 10,000lb capacity, 161" 2WA WB, (2) 6,000lb Swing Jacks, stainless turnplates.	Login for special pricing	Add to cart
1-RX10KF	Scissor Lift, flush mount, 10,000lb capacity, 161" 2WA WB, (2) 6,000lb Swing Jacks, stainless turnplates.	Login for special pricing	Add to cart
1-RX10KFBLK	BlackScissor Lift, flush mount, 10,000lb capacity, 161" 2WA WB, (2) 6,000lb Swing Jacks, stainless turnplates.	Login for special pricing	Add to cart
1-RX10KFIS	Scissor Lift, flush mount, FIA, Inflation Station, PowerSlide, 10,000lb capacity, 161" 2WA WB, (2) 6,000lb Swing Jacks, PowerSli	Login for special pricing	Add to cart
1-RX10KFISBLK	BLK Scissor Lift, flush mount, FIA, Inflation Station, PowerSlide, 10,000lb capacity, 161" 2WA WB, (2) 6,000lb Swing Jacks, Powe	Login for special pricing	Add to cart
1-RX10KFPS	Scissor Lift, FIA, PowerSlide, 10,000lb capacity, 166" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates.	Login for special pricing	Add to cart
1-RX10KFPSBLK	Black Scissor Lift, FIA, PowerSlide, 10,000lb capacity, 166" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates.	Login for special pricing	Add to cart
1-RX10KIS	Scissor Lift, FIA, Inflation Station, PowerSlide, 10,000lb capacity, 166" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates	Login for special pricing	Add to cart
1-RX10KISBLK	Blk Scissor Lift, FIA, Inflation Station, PowerSlide, 10,000lb capacity, 166" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnpl	Login for special pricing	Add to cart
1-RX10KPS	Scissor Lift, FIA, PowerSlide, 10,000lb capacity, 166" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates	Login for special pricing	Add to cart
1-RX10KPSBLK	Black Scissor Lift, FIA, PowerSlide, 10,000lb capacity, 166" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates	Login for special pricing	Add to cart



Accessories

1-147-113-1-ppp	Long RX Approach Ramp Extension (Two Required)	Login for special pricing	Add to cart
1-20-2189-1BLK	Stage 2 RX Approach Ramps - 50" long extended approach ramps for all RX models. Black	Login for special pricing	Add to cart
1-20-2395-1BLK	Black, Kit-50mm Filler Plate - Fits into turnplate pockets when turnplates are not used. 19.5" wide.	Login for special pricing	Add to cart

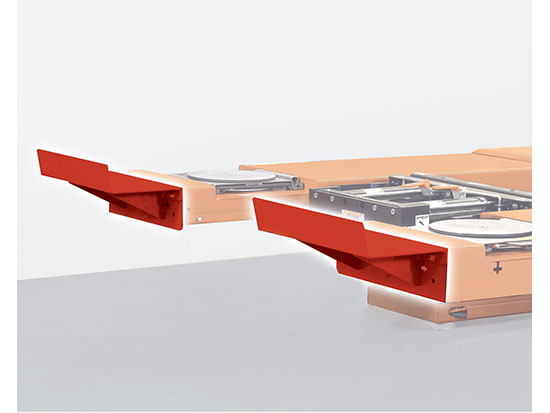

1-20-2497-1	RX16, RX12A, and RX10 series Conventional Sensor Extension Kit for Surface-Mount Applications	Login for special pricing	Add to cart
1-20-2497-1BLK	Black, RX16, RX12A, and RX10 series Conventional Sensor Extension Kit for Surface-Mount Applications	Login for special pricing	Add to cart
1-20-2498-1	RX16, RX12A, and RX10 series Drive-Through Kit	Login for special pricing	Add to cart
1-20-2498-1BLK	RX16, RX12A, and RX10 series Drive-Through Kit	Login for special pricing	Add to cart
1-20-2532-1	14" Convertible Turnplates Kit, Stainless Steel	Login for special pricing	Add to cart
1-20-2533-1	14" Convertible Turnplates Kit - Low Friction, Stainless Steel	Login for special pricing	Add to cart
1-20-2736-1BLK	Black RX10, 12A, 16 Flush Conversion Kit. Ramps and extenders to convert a surface mount rack to flush mount.	Login for special pricing	Add to cart
1-20-2842-1	Rubber Wheel Chock Kit	Login for special pricing	Add to cart
1-20-3113-1	RX ramp extension kit -Adds 17.75" to the length of RX9, RX10 and RX16; or 5" to RX-12	Login for special pricing	Add to cart
1-20-3113-1BLK	Blk, RX ramp extension kit -Adds 17.75" to the length of RX9, RX10 and RX16; or 5" to RX-12	Login for special pricing	Add to cart
1-20-3438-1	RX light kit for K model racks.	Login for special pricing	Add to cart
1-20-3631-1	PS TO IS UPGRADE RXK	Login for special pricing	Add to cart

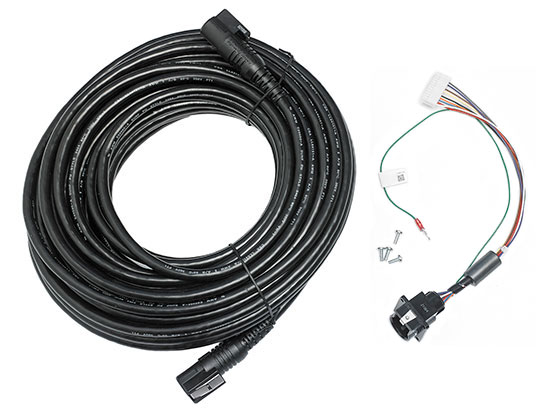

1-20-3855-1	Kit-Wired FIA Harness & Cable for RX Racks	Login for special pricing	Add to cart
1-22-525-2	Angle - Rubber Wheel Chock	Login for special pricing	Add to cart
1-51-1696-1	Clip-on Moveable Workstep	Login for special pricing	Add to cart
1-69-1456-005	COVER-HYDRAULIC HOSE WIDE 47"L	Login for special pricing	Add to cart
1-PACKAGING	Wood Packaging to protect Lift Racks during shipping (required for shipments to Alaska/Hawaii only)	Login for special pricing	Add to cart
