The RX14KL and RX16KL handle up to 195” two-wheel alignment wheelbases. This longer wheelbase adds more medium duty vehicle capability. More importantly, there is more runway to perform rolling compensation on crew-cab pickups and larger vans.



Features

• 195” 2-wheel alignment wheelbase! (+13” for RX14, +17” for RX16).
• Utilizes same base, legs, and console so service and install changes very little.
• New adjustable turnplate pockets give super long 88”-168” 4-wheel alignment service range. Most user will position turnplate in the front pocket and leave them there 95% of the time. When a short vehicle needs alignment, just move the turnplates back.
• Max. Vehicle Weight 16,000 lbs. (7200 kg).
• Max. Wheelbase General Service 201 in. (5105 mm).
• Two-Wheel Alignment 195 in. (4953 mm).
• Four-Wheel Alignment 168 in. (4267 mm).
• Alignment Height All lock positions Min. Four-Wheel Alignment 88 in. (2235 mm).
• Lifting Speed 1 speed, 60 seconds Lowering Speed 2 speed, 25 seconds.



Technical

ALI Certified	Yes
Max Wheel Base	201 in. (5105 mm)	inch
Weight approx.	6359	lbs
Above ground or inground	Inground
Power supply	208-230 VAC, single phase power, 26 Amp	V/Hz/A
Dimensions (L x W x H)	53x35x217	inch



Options

1-RX16KLFBLK	Black, Scissor Lift, flush mount version, 16,000lb capacity, 195" 2WA WB, (2) 9,000lb Swing Jacks, stainless turnplates.	Login for special pricing	Add to cart
1-RX16KLFIS	Scissor Lift, flush mount, FIA (Standard wireless connectivity), Inflation Station, PowerSlide, 16,000lb capacity, 195" 2WA WB,	Login for special pricing	Add to cart
1-RX16KLFISBLK	ck, Scissor Lift, flush mount, FIA (Standard wireless connectivity), Inflation Station, PowerSlide, 16,000lb capacity, 195" 2WA	Login for special pricing	Add to cart
1-RX16KLFISPRB	Black, Harsh Duty Scissor Lift, flush mount, FIA (Standard wireless connectivity), Inflation Station, PowerSlide, 16,000lb capac	Login for special pricing	Add to cart
1-RX16KLFPS	Scissor Lift, flush mount, FIA (Standard wireless connectivity), PowerSlide, 16,000lb capacity, 195" 2WA WB, (2) 9,000lb Swing J	Login for special pricing	Add to cart
1-RX16KLFPSBLK	Black, Scissor Lift, flush mount, FIA (Standard wireless connectivity), PowerSlide, 16,000lb capacity, 195" 2WA WB, (2) 9,000lb	Login for special pricing	Add to cart



Accessories

1-133-84-1	9,000-lb. Capacity Swing Air Jack	Login for pricing	Add to cart
1-20-2189-1BLK	Stage 2 RX Approach Ramps - 50" long extended approach ramps for all RX models. Black	Login for pricing	Add to cart
1-20-2497-1	RX16, RX12A, and RX10 series Conventional Sensor Extension Kit for Surface-Mount Applications	Login for pricing	Add to cart
1-20-2497-1BLK	Black, RX16, RX12A, and RX10 series Conventional Sensor Extension Kit for Surface-Mount Applications	Login for pricing	Add to cart
1-20-2532-1	14" Convertible Turnplates Kit, Stainless Steel	Login for pricing	Add to cart
1-20-2533-1	14" Convertible Turnplates Kit - Low Friction, Stainless Steel	Login for pricing	Add to cart
1-20-3113-1	RX ramp extension kit – 20-3113-1 (two included) Adds 17.75" to the length of RX9, RX10 and RX16; or 5" to RX-12	Login for pricing	Add to cart

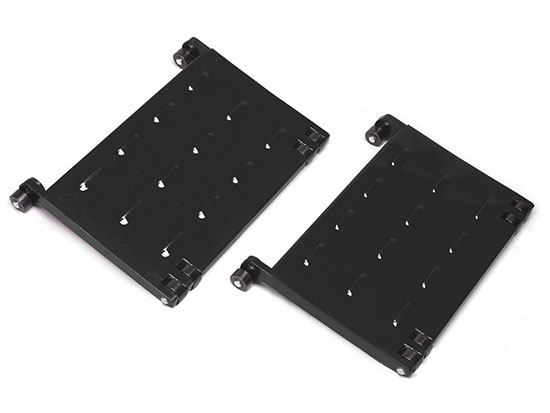

1-20-3113-1BLK	Black, RX ramp extension kit – 20-3113-1 (two included) Adds 17.75" to the length of RX9, RX10 and RX16; or 5" to RX-12	Login for pricing	Add to cart
1-20-3438-1	RX light kit for K model racks.	Login for pricing	Add to cart
1-22-525-2	Angle - Rubber Wheel Chock	Login for pricing	Add to cart
1-PACKAGING	Wood Packaging to protect Lift Racks during shipping (required for shipments to Alaska/Hawaii only)	Login for pricing	Add to cart
