Features

• Standard-length runways with two 9,000-lb. Swing Air Jacks and stainless steel turnplates.
• New easy-to-use Control Console.
• Max. vehicle weight 18,000 lbs. (8164 kg) Max. wheelbase General service 193” (4902 mm).
• Two-wheel alignment 177” (4496 mm).
• Four-wheel alignment 158” (4013 mm) Min. four-wheel alignment 88” (2235 mm).
• Max. lifting height 75” (1905 mm).
• Alignment height any of 16 lock positions; minimum height 8 3/4"(222.25mm).
• Overall height 98" (2489mm) - Tread Width Min. inside 40” (1016 mm) • Max. outside 85” (2159 mm).



Technical

Weight approx.	7,497	lbs
Color	Hunter Red
Power supply	3 hp, 208-230 VAC, 60 Hz, 1 ph	V/Hz/A
Dimensions (L x W x H)	208 x 35 x 26	inch



Options

1-L451JTBLK	Black, 4-Post, Open Front, 18,000lbs Capacity, 177" 2WA WB, (2) 9,000lbs Swing Jacks, Stainless turnplates, air line kit.	Login for special pricing	Add to cart
1-L451LJT	Hunter L451LT-PS Open Front, High Capacity Lift Rack with Extended Length	Login for special pricing	Add to cart
1-L451LT-IS	Hunter L451LT-IS, Open Front, High Capacity with Extended Length, Inflation Station and Power Slide	Login for special pricing	Add to cart
1-L451LT-ISBLK	4-Post, Open Front, FIA, Inflation Station, PowerSlide, 18,000lbs Capacity, 211" 2WA WB, (2) 9,000lbs Swing Jacks, PowerSlide tu	Login for special pricing	Add to cart
1-L451LT-PS	Hunter L451LT-PS, Open Front, High Capacity Lift Rack with Extended Length and Power Slide.	Login for special pricing	Add to cart
1-L451LT-PSBLK	4-Post, Open Front, PowerSlide, 18,000lbs Capacity, 211" 2WA WB, (2) 9,000lbs Swing Jacks, PowerSlide turnplates, air line kit.B	Login for special pricing	Add to cart
1-L451T-IS	L451 LIFT RACK W/INFLATION STATION, POWERSLIDE, JACKS & TURNPLATES	Login for special pricing	Add to cart
1-L451T-ISBLK	4-Post, Open Front, 18,000lbs Capacity, FIA, Inflation Station, PowerSlide, 177" 2WA WB, (2) 9,000lbs Swing Jacks, PowerSide tur	Login for special pricing	Add to cart
1-L451T-PS	L451 LIFT RACK W/POWERSLIDE, JACKS & TURNPLATES	Login for special pricing	Add to cart



Accessories

1-133-84-1	Swing Air Jack - 9,000 lb. Capacity.	Login for pricing	Add to cart
1-20-2993-1	4-Post Lift LED Lighting Kit	Login for pricing	Add to cart
1-20-3072-1	KIT-Front Mount Console Bracket	Login for pricing	Add to cart

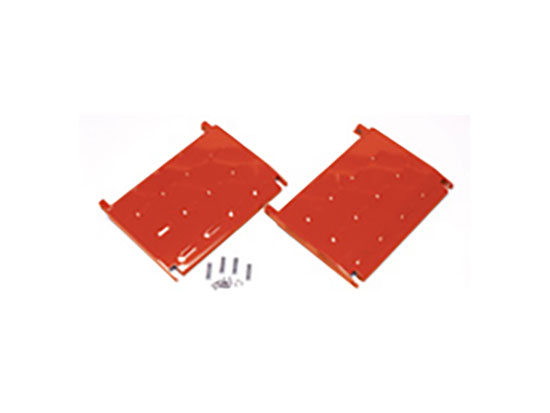

1-20-3145-1	Drive-On Ramp Extension Kit for 26" wide runways L45X model 4-posts. Adds 17.5" to length for low ground clearance vehicles or high floor slope conditions.	Login for pricing	Add to cart

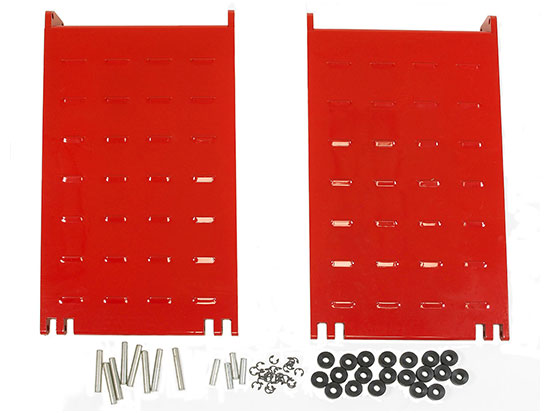

1-20-3146-1	Extra Long Drive-On Ramp Extension Kit for 26" wide runway L45X model 4-posts. Adds 40" to length for low ground clearance vehicles or high floor slope conditions. May be folded up.	Login for pricing	Add to cart
1-20-3870-1	Drive-Thru Kit for L451 & L454	Login for pricing	Add to cart
1-20-3870-1BLK	Drive-Thru Kit for L451 & L454 Black	Login for pricing	Add to cart
