Granby tanks provide a double wall solution for lubricants, waste oil, washer fluid, ATF, heating oil and diesel blends up to B100.  Constructed of a fluorinated internal HDPE tank and galvanized steel external tank with sturdy integrated galvanized base, these units optimize tight space utilization.  With two tank sizes available, both are suited for areas with headroom as low as 60” and narrow doorways as narrow as 28” wide.  Easily add fluid fill and dispensing equipment with the top mount bracket kit.



Features

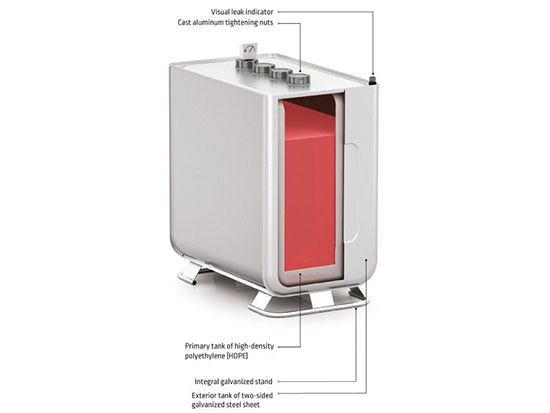

• Primary tank with galvanized steel secondary containment.
• Visual leak indicator for the monitoring of the integrity of the primary tank.
• Fluorination treated against oil odors, exclusive to granby 2-in-1 tanks.
• Connection fittings made of cast aluminum for greater torque resistance and greater peripheral sealing.
• Accessories Included: 2” NPT GALVANIZED STEEL FILL PIPE ADAPTER, LOW PRESSURE VENT AND OVERFILL PROTECTION ALARM, OIL LEVEL GAUGE, OIL BURNER SUPPLY DUPLEX BUSHING WITH TUBE ADAPTERS
• Weight: 185 lbs.
• Dimensions: 43 1/8" x 27 1/2" x 62".
• UL-2258 and ULC-S670 certifications.
• 30 year limited warranty.



Technical

Dimensions (L x W x H)	43.125 x 27.5 x 62	inch
Weight approx.	185	lbs
